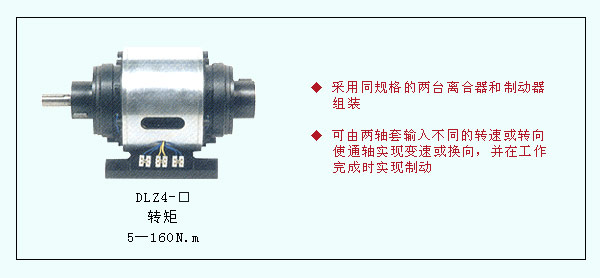

| DLZ4系列组合离合器 |
 |
 |

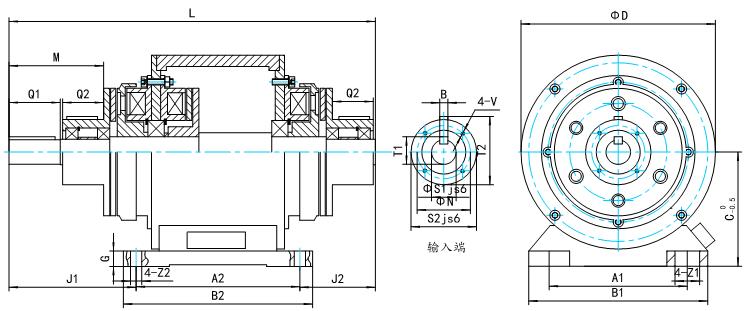

| 规格 |
A1 |
A2 |
B1 |
B2 |
C |
D |
G |
J1 |
J2 |
L |
M |
| DLZ4-5 |
65 |
90 |
90 |
105 |
65 |
100 |
10 |
73 |
48 |
211 |
47 |
| DLZ4-10 |
80 |
110 |
110 |
130 |
80 |
125 |
12 |
83 |
53 |
246 |
57 |
| DLZ4-20 |
105 |
135 |
140 |
160 |
90 |
150 |
15 |
99 |
59 |
294 |
72 |
| DLZ4-40 |
135 |
160 |
175 |
185 |
112 |
190 |
15 |
124 |
74 |
358 |
93 |
| DLZ4-80 |
155 |
200 |
200 |
230 |
132 |
230 |
18 |
150 |
90 |
440 |
114 |
| DLZ4-160 |
195 |
240 |
240 |
270 |
160 |
290 |
20 |
197 |
114 |
551 |
143 |
|
| |
| 规格 |
N |
Z1 |
Z2 |
S1 |
S2 |
T1 |
T2 |
B |
Q1 |
Q2 |
V |
| DLZ4-5 |
33 |
13.5 |
6.5 |
11 |
38 |
12.5 |
39.5 |
4 |
25 |
20 |
M3深4 |
| DLZ4-10 |
37 |
15 |
9 |
14 |
45 |
16 |
47 |
5 |
30 |
25 |
M4深6 |
| DLZ4-20 |
47 |
20 |
11 |
19 |
55 |
21.5 |
57.5 |
6 |
40 |
30 |
M4深6 |
| DLZ4-40 |
52 |
24 |
11 |
24 |
64 |
27 |
67 |
8 |
50 |
40 |
M4深6 |
| DLZ4-80 |
62 |
28 |
14 |
28 |
75 |
31 |
78 |
8 |
60 |
50 |
M5深8 |
| DLZ4-160 |
79 |
28 |
14 |
38 |
90 |
41 |
93 |
10 |
80 |
60 |
M5深8 |
|
| |
|
|
