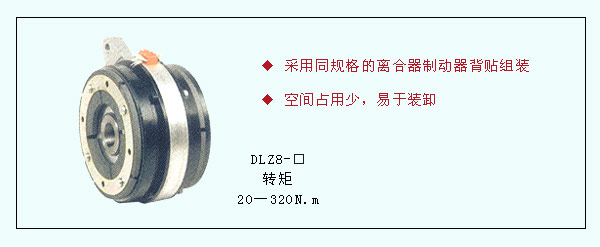

| DLZ8系列套筒式组合离合器 |
 |
 |

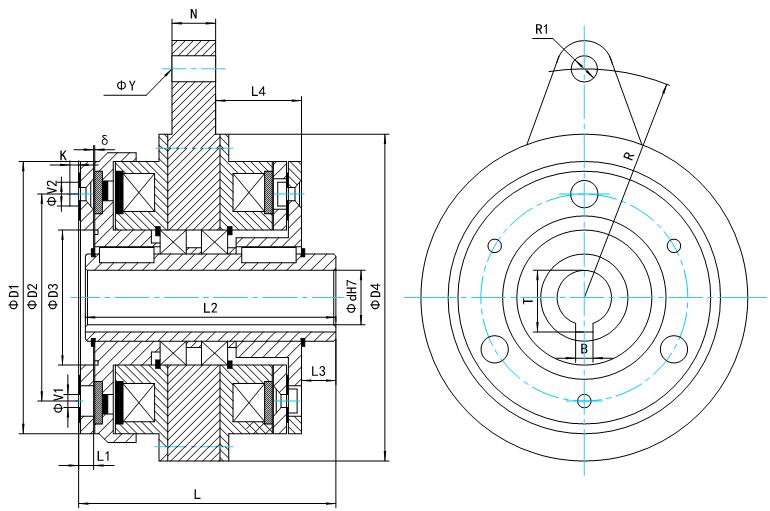

| 型号 |
D1 |
D2 |
D3 |
D4 |
d |
R |
R1 |
L |
L1 |
L2 |
| DLZ8-20 |
100 |
76 |
52 |
125 |
20 |
87.5 |
11 |
112 |
5.5 |
110 |
| DLZ8-40 |
125 |
95 |
62 |
150 |
25 |
105 |
13 |
118 |
6.5 |
115 |
| DLZ8-80 |
160 |
120 |
80 |
190 |
35 |
132 |
18 |
139 |
8.5 |
135 |
| DLZ8-160 |
200 |
158 |
100 |
230 |
40 |
159 |
20 |
167 |
10.5 |
160 |
| DLZ8-320 |
260 |
210 |
125 |
290 |
48 |
200 |
25 |
188 |
12 |
180 |
|
| |
| 型号 |
L3 |
L4 |
V1 |
V2 |
Y |
N |
B |
T |
K |
δ |
| DLZ8-20 |
28 |
30 |
5.2 |
8 |
10 |
16 |
5 |
22.3 |
2.5 |
0.3 |
| DLZ8-40 |
16 |
39 |
6.2 |
10 |
12 |
20 |
8 |
28.3 |
2.5 |
0.3 |
| DLZ8-80 |
20 |
47 |
8.2 |
12 |
15 |
20 |
10 |
38.3 |
3 |
0.3 |
| DLZ8-160 |
29 |
56 |
10.3 |
15 |
18 |
20 |
10 |
43.3 |
4 |
0.5 |
| DLZ8-320 |
24 |
64 |
12.4 |
18 |
21 |
30 |
12 |
51.3 |
4.5 |
0.5 |
|
| |
|
|
